Air To Air Heat Exchanger

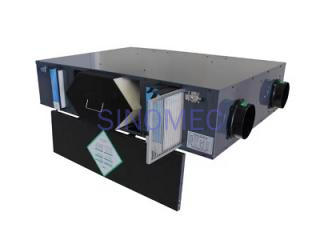

Evaporative energy recovery ventilator with aluminium core; Energy recovery ventilator with enthalpy core; Heat recovery ventilator; cabinet and base station ventilator. Air to air heat exchanger core: ABS framework enthalpy heat exchanger core, Hydrophlic aluminium heat exchanger core, Epoxy coating heat exchanger core. Base on their structure and feature can be divided into several series with cross flow, counter flow and cross & counter flow 3 air flows.

  • 1) Cross Flow Heat Exchanger Core
    Cross flow heat exchanger core is made of antiseptic hydrophilic/epoxy coating aluminum foil and galvanized sheet cover. The air is forced to crossover through the heat exchanger core, two airstreams never come into direct contact, avoid the transfer of any smell and moisture. It is usually being used for recovering energy at residential, commercial and wind -power industry ventilation systems.
  • 2) Counter Flow Heat Exchanger Core
    Counter flow heat exchanger core is made of antiseptic hydrophilic/epoxy coating aluminum foil and galvanized sheet cover. The air is forced to counter through the heat exchanger core, two airstreams never come into direct contact, avoid the transfer of any smell nd moisture. It is usually being used for recovering energy at industrial ventilation system, such as: base station/outdoor cabinet ventilator and so on.
  • 3)Cross & Counter Flow Heat Exchanger Core
    Cross & counter flow heat exchanger core is made of antiseptic hydrophilic/aluminum foil and galvanized sheet cover. A part of air is cross flow, and the other is counter flow, two airstreams never come into direct contact, avoid the transfer of any smell and moisture. It is usually being used for recovering energy at residential household, commercial and industrial ventilation systems.
  • 4)Enthalpy Heat Exchanger Core
    Heat exchanger core is made of fireproof and antibacterial fibrous paper and ABS framework, the air is forced to crossover through the heat exchanger core, two airstreams never come into direct contact, avoid the transfer of any smell and moisture. It is usually being used for residential ventilation system, in order to recover the energy and moisture
Plate Type Explicit Heat Exchanger
Application Environment
Air to air heat exchanger core are widely used for different industry air exchanger, heat recovery .cooling or heating and dehumidification. Such as in HAVC .Telecom, Power Supply, Textile Industry .Automobile, Food Industry, Agriculture, Animal husbandry, Tobacco barn, Drying industry, Welding industry, Boiler Industry and so on

Feature
1、Adopt antiseptic hydrophilic aluminium foil, resistant to corrosion, with long service life.
2、Apply to special occasions of epoxy resin aluminum foil, corrosion resistance stronger.
3、Many size heat exchanger cores (plate distance 2.5-10 mm) for your choice.
4、Module structure, any size can be provided, no running components, low maintenance cost.
5、Compact structure, small volume, suitable for various occasions.

Production Technology
1、The surface of heat exchanger core was processed with spiral wave heat transfer enhancement techniques, increase the 10% heat transfer area.
2、Convex and concave air channel, ensure the strength and tightness of heat exchanger core, could bear high pressure.
3、Cross air channel, double folding process of the face side edges, which is equal to 5 times material thickness, ensure the high intensity and tightness.
4、All joints are airproofed by air proof glue, ensured that the heat exchanger has excellent air tightness.
Remark: The different material and thickness of framework are able to choose from (Such as: Galvanized sheet, Aluminum zinc coated steel sheet, Aluminium sheet, Painting steel plate, Painting galvanized sheet, Stainless steel and other anticorrosive material), the connecting format of framework has screw, buckle, flange and so on.
  • Air to Air heat exchanger (SS304)
  • Air to Air heat exchanger ( Epoxy)
  • Air to Air heat exchanger(Aluminum)
  •
  •
  •
  •
Plate type full heat exchanger
Feature
1、Made of special fibrous paper, with high moisture permeability, good air-tightness, anti-rends, aging resistance, anti-mildew.
2、ABS framework, beautiful, not easy to break, long service time, pro-environment, good impermeability, ensure the intensity and tightness of structure, reduce back flow.
3、Rectangular channel, reasonable plate distance, less interior brace, small on-way resistance, less air loss, ensured the maximum heat exchanger core area, achieved to maximum efficiency.
4、Module structure, provide different size combination of edges and plate thickness.
5、No moving parts, and low maintenance cost, compact structure, small volume, suitable for various occasions.
6、Can use the vacuum cleaner purify the dust and foreign bodies on the devices, easy to use and maintenance.
